CS310,CS410,CS510系列维修配件
上海启为信息科技有限公司 / 2018-10-17

Lexmark CS310, CS410, CS510 Laser Printer Repair Parts

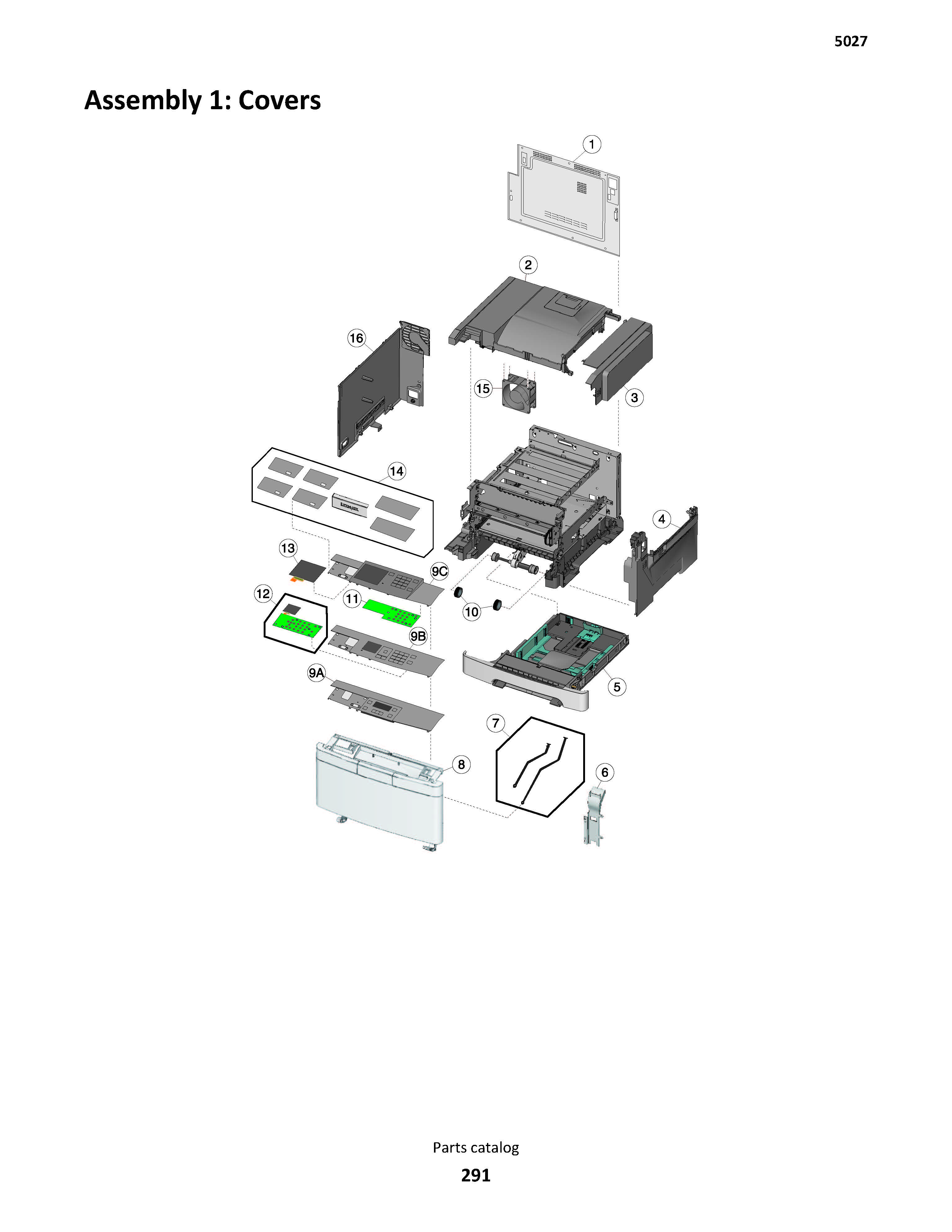

	P/N	Units/mach	Units/FRU	Description
1‑1	40X7643	1	1	Controller board cover (CS310, CS410)
1	40X7644	1	1	Controller board cover (CS510, C2132)
2	40X7633	1	1	Top cover assembly
3	40X7621	1	1	Toner supply door
4	40X7630	1	1	Right cover assembly
5	40X7645	1	1	250‑sheet tray assembly
6	40X5803	1	1	Duplex reference edge
7	40X7619	2	2	Front cover straps
8	40X7635	1	1	Front cover assembly
9A	40X7638	1	1	Operator panel and display assembly (CS310)
9B	40X7640	1	1	Operator panel (CS410)
9C	40X7642	1	1	Operator panel (CS510, C2132)
10	40X5168	2	2	Pick tires
11	40X7650	1	1	UICC card (CS510, C2132)
12	40X7651	1	1	2.4” Display and UICC card (CS410)
13	40X7116	1	1	4.3” Display
14	40X7637	1	1	Operator panel bezel and name plates, including: • Bezel (1) • Name plates (4) • Logo plate (1) • CS310 cover (1) • CS310 cover (1) • CS510 USB cover (1) • CS510 USB cover (1)
15	40X7634	1	1	System fan
16	40X7632	1	1	Left cover assembly

	P/N	Units/mach	Units/FRU	Description
2-1	40X7627	1	1	Printhead laser
2	40X7629	1	1	Fuser drive motor assembly
3	40X7646	1	1	Lower left frame and lower right frame with cable cover
4	40X7652	1	2X	Spring parts package • Tray‑bias spring (2) • Fuser latch spring (2) • Transfer module front hold down spring (2) • Front cover latch spring (2)
5	40X7610	1	1	Transfer module assembly
6	40X7614	1	1	Paper pick motor drive assembly, standard tray
7	40X7628	1	1	EP drive gear assembly, with motors
8	40X7622	1	1	Fuser assembly, 115 V
8	40X7623	1	1	Fuser assembly, 230 V

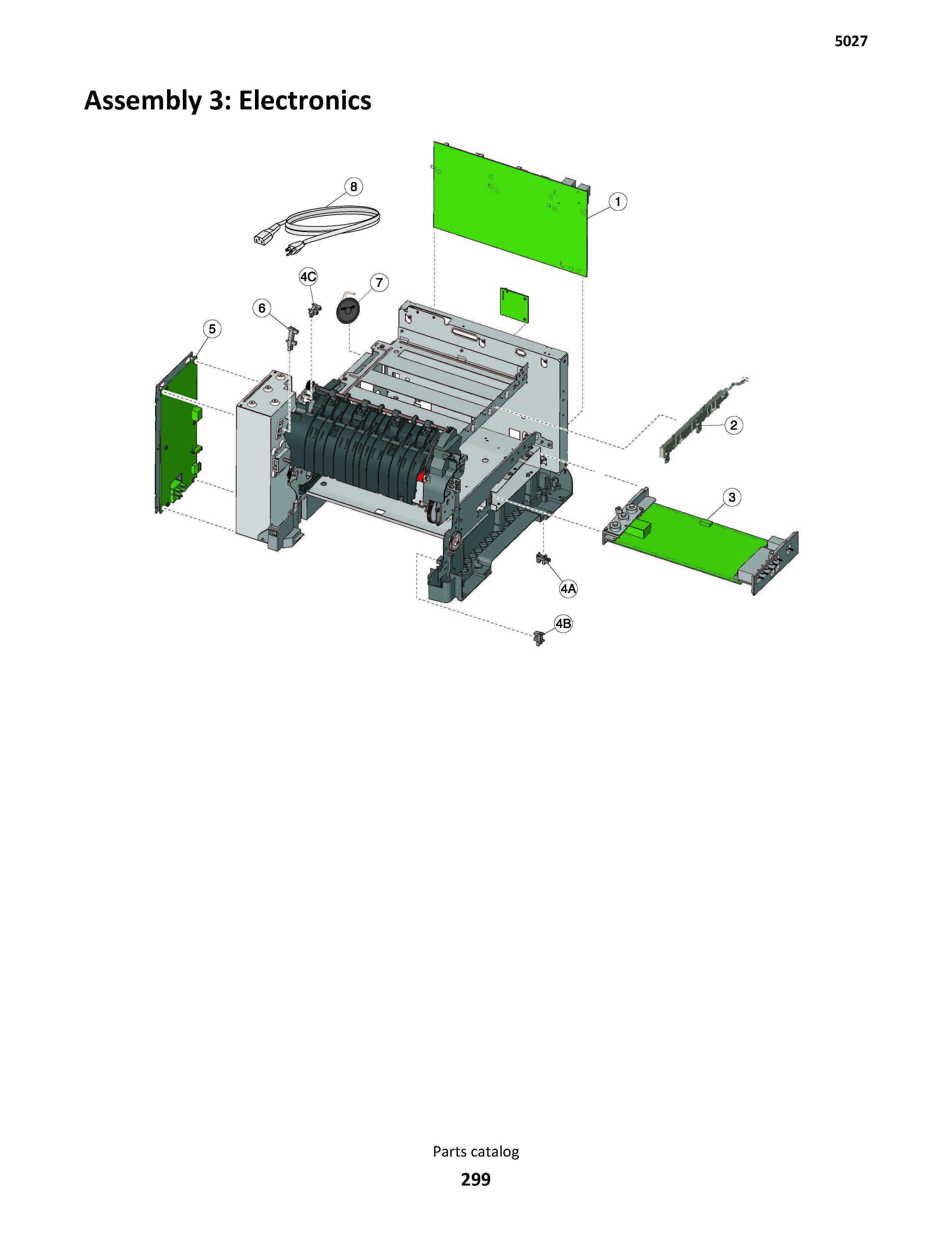

	P/N	Units/mach	Units/FRU	Description
3‑1	40X7613	1	1	Controller board (CS310)
1	40X7612	1	1	Controller board (CS410)
1	40X7611	1	1	Controller board (CS510, C2132)
2	40X7620	1	1	Toner meter cycle card assembly
3	40X7625	1	1	High‑voltage power supply
4	40X7301	3	1	Photo sensor and retainer (one per package), used for: • Tray present sensor (5A) • Duplex sensor (5B) • Bin‑full/narrow media sensor (5C)
5	40X7626	1	1	Low‑voltage power supply (universal power supply)
6	40X5413	1	1	Fuser exit sensor
7	40X7703	1	1	Speaker (CS510, C2132)
8	40X0303	1	1	Power cord, 2.5 m (straight): PRC

	P/N	Units/mach	Units/FRU	Description
4‑1	40X5429	1	1	Transfer module paper path thermistor
2	40X5414	2	1	Toner density sensors, left or right (one in package)
3	40X7046	1	1	Waste toner bottle sensor
4	40X7636	4	4	Toner cartridge contacts (Pogo pin)
5	40X7639	1	1	Operator panel cable (CS310)
6	40X7641	1	1	Operator panel and USB port cables packet • Operator panel cable (CS410, CS510, C2132) (6A) • USB port cable (6B)
7	40X7618	1	1	Front and right side interlock switch cover assembly
8	40X7647	1	1	Cable packet, used for: • Fuser exit/narrow media to controller board (8A) • Fuser motor, thermistor, and duplex sensor to controller board (8B) • LVPS to controller board (8C) • CMY/K motors to controller board (8D) • Tray 2 to controller board (8E) • HVPS to controller board (8F) • Tray present sensor to controller board (8G) • AC power to LVPS (8H) • Speaker cable (NS)

	P/N	Units/mach	Units/FRU	Description
5-1	40X8089	1	0	Optional 650‑sheet duo drawer (complete) (includes 100‑sheet MPF)
2	40X5168	2	2	Pick tires
3	40X8091	1	1	650‑sheet Duo Drawer tray assembly
4	40X8090	1	1	Optional 550‑sheet drawer (complete) (CS410, CS510, and C2132 only)
