MS710,MS810系列维修配件
上海启为信息科技有限公司 / 2018-09-13



Lexmark MS710, MS711, MS810, MS811, MS812, MS817 Laser Printer Repair Parts

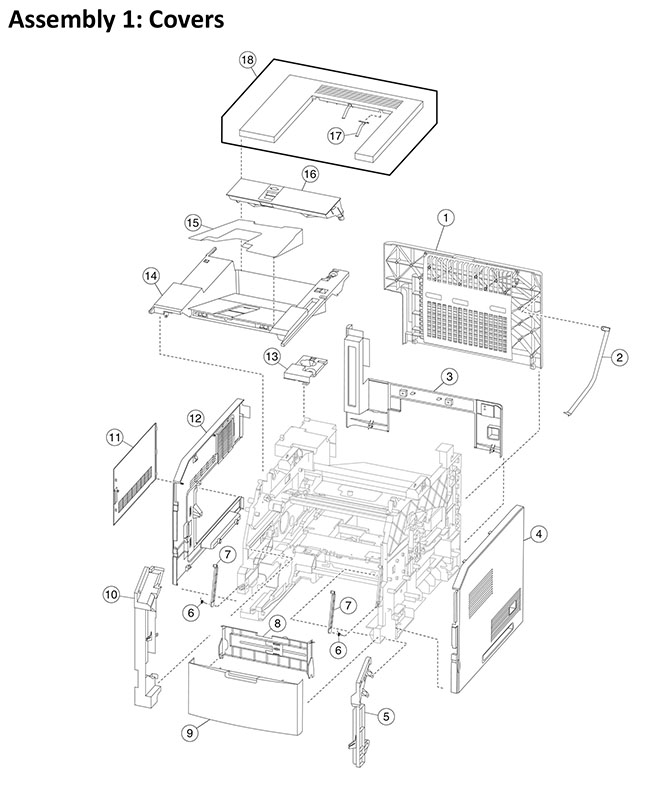

  Lexmark MS810 Assembly 1: Covers



Assembly 1: Covers
1 40X7678 Door, rear
2 40X7726 Support, rear door
3a 40X7671 Cover, rear lower, 550-sheet, MS711, MS810, MS811, MS812
3b 40X8404 Cover, rear lower, 250-sheet, MS710
4a 40X7680 Cover, right, 550-sheet MS711, MS810, MS811, MS812
4b 40X8403 Cover, right, 250-sheet MS710
5 40X7670 Cover, inner right
6 40X7690 Spring, torsion
7 40X7715 Link, support, front door
8 40X7725 Feeder, multipurpose
9 40X7674 Door, front MS810, MS811
10 40X7669 Cover, inner left
11 40X7672 Cover, controller card access
12a 40X7679 Cover, left, 550-sheet MS711, MS810, MS811, MS812
12b 40X8402 Cover, left, 250-sheet MS710
13 40X7677 Cover, bin sensor
14a 40X7675 Cover, standard bin, 550-sheet MS711, MS810, MS811, MS812
14b 40X8397 Cover, standard bin, 250-sheet MS710
15 40X8855 Bin insert
16 40X8398 Cover, fuser wiper MX710, MX711
17 40X7604 Guide, output bin
18 40X7673 Cover, top
Top

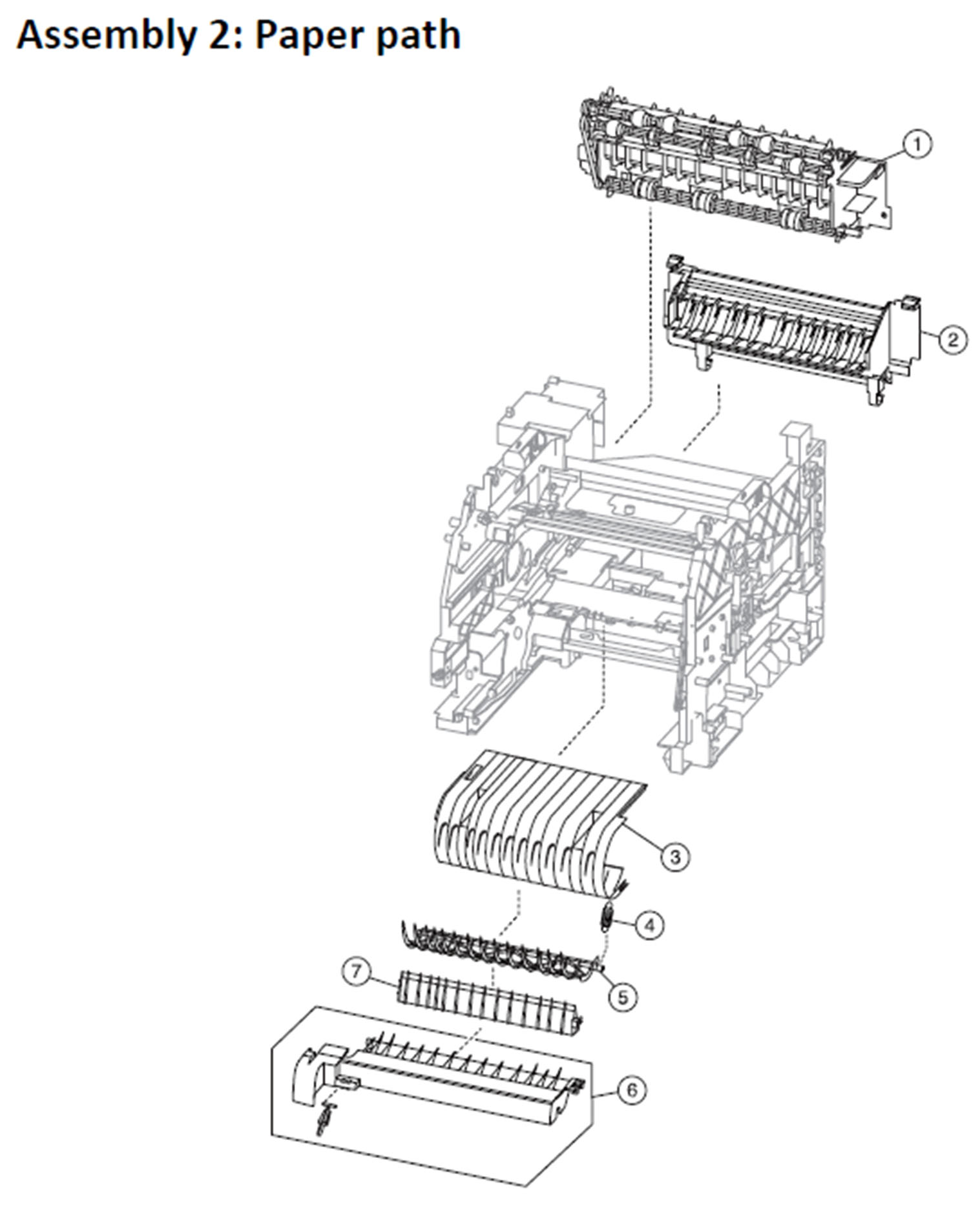

Lexmark MS810 Assembly 2: Paper Path



Assembly 2: Paper Path
1 40X7602 Redrive, upper
2a 40X7588 Door, fuser access, MS81x
2b 40X8399 Door, fuser access, MS710, MS711
3 40X7587 Deflector, inner guide
4 40X7585 Spring, recoil
5 40X7584 Duplex exit diverter
6 40X7583 Guide, media turn
7 40X7586 Guide, media vertical
Top

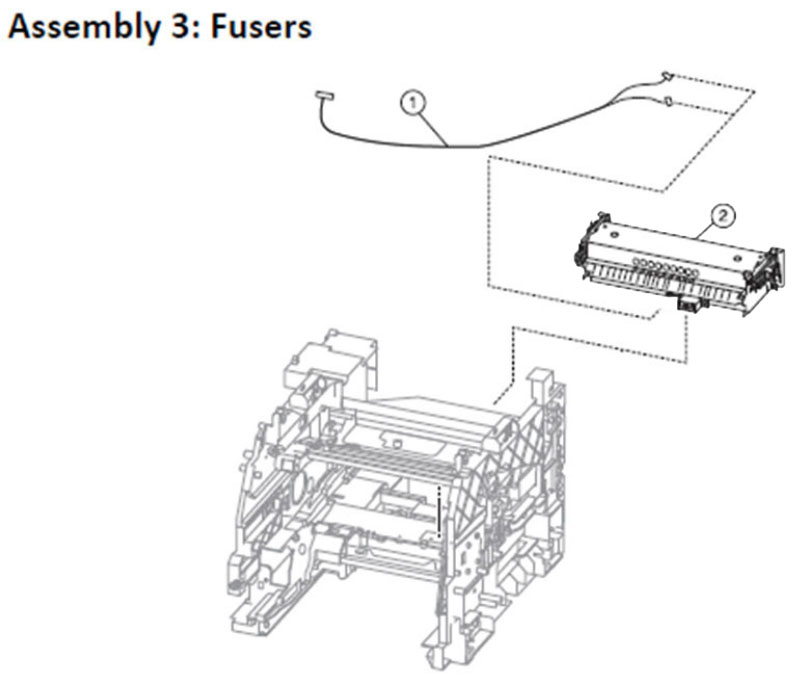

Lexmark MS810 Assembly 3: Fusers



Assembly 3: Fusers

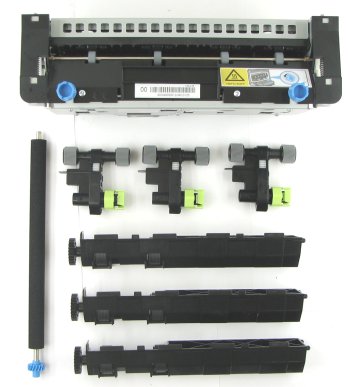

Maintenance Kit, MS710, MS711, MS810, MS811, MS812



定影维护组件
包含定影和搓纸轮，分离辊，转印辊
1 40X7577 Cable, fuser data
  40X7706 Roller maintenance kit, MS71x, MS81x (contains pick rollers, separation rollers and transfer roller)

MS710, MS711 Fusers and Maintenance Kits
2 40X8503 Fuser 110V, return program, MS710, MS711, type 11
  40X8530 Maintenance Kit 110V, return program, MS710, MS711, type 11
2 40X8506 Fuser 110V, MS710, MS711, type 17
  40X8533 Maintenance Kit 110V, return program, MS710, MS711, type 17
2 40X8504 Fuser (non-standard) 220V, return program, MS710, MS711, type 13
  40X8531 Maintenance Kit (non-standard) 220V, return program, MS710, MS711, type 13
2 40X8507 Fuser (non-standard) 220V, MS710, MS711, type 19
  40X8534 Maintenance Kit (non-standard) 220V, MS710, MS711, type 19

MS810, MS811, MS812, MS817 Fusers
  Standard 110V Letter Size Paper
2 40X7743 Fuser 110V, return program, MS81x, type 00, paper size: letter
  40X8420 Maintenance Kit 110V, return program, MS81x, type 00, paper size: letter
2 40X8016 Fuser 110V, MS81x, type 05, paper size: letter
  40X8425 Maintenance Kit 110V, MS81x, type 05, paper size: letter

  Non-Standard Voltage 220V Letter Size Paper
2 40X7734 Fuser 220V, return program, MS81x, type 04, paper size: letter
  40X8424 Maintenance Kit 220V, return program, MS81x, type 04, paper size: letter
2 40X8020 Fuser 220V, MS81x, type 09, paper size: letter
  40X8429 Maintenance Kit 220V, MS81x, type 09, paper size: letter

  Non-Standard A4 Paper Size 110V
2 40X7581 Fuser 110V, return program, MS81x, type 03, paper size: A4
  40X8423 Maintenance Kit 110V, return program, MS81x, type 03, paper size: A4
2 40X8019 Fuser 110V, MS81x, type 08, paper size: A4
  40X8428 Maintenance Kit 110V, MS81x, type 08, paper size: A4

  International 220V A4 Size Paper
2 40X7744 Fuser 220V, return program, MS81x, type 01, paper size: A4
  40X8421 Maintenance Kit 220V, return program, MS81x, type 01, paper size: A4
2 40X8017 Fuser 220V, MS81x, type 06, paper size: A4
  40X8426 Maintenance Kit 220V, MS81x, type 06, paper size: A4
Top

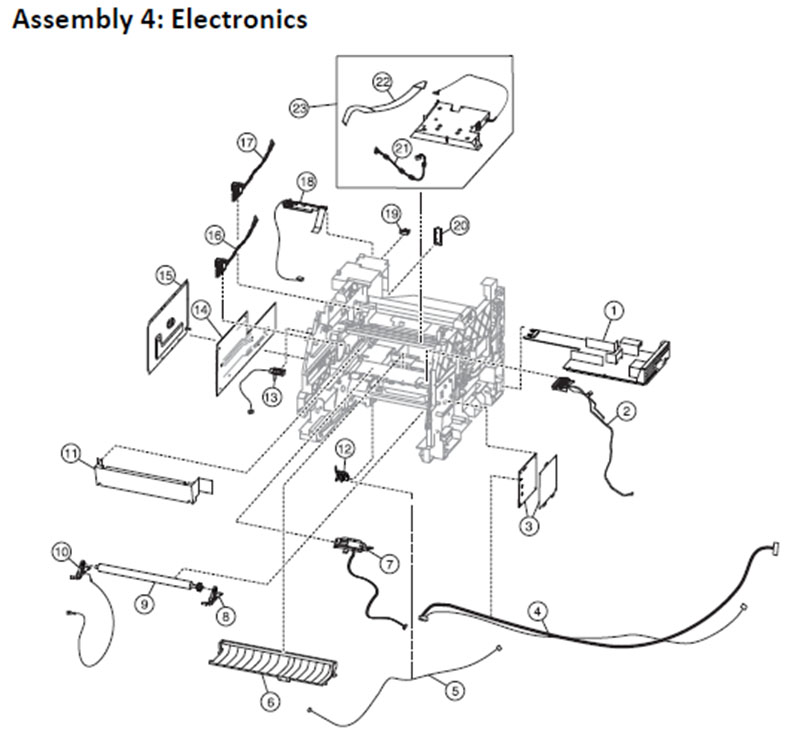

Lexmark MS810 Assembly 4: Electronics



Assembly 4: Electronics
1 40X7694 Power supply, low voltage (universal)
2 40X7685 Contact, toner level / imaging unit
3 40X7578 Power supply, high voltage
4 40X7699 Cable, fan high voltage power supply toner cartridge
5 40X7688 Cable, input sensor
6 40X9754 Transfer guide static brush
7 40X7686 Sensor (toner density)
8 40X7606 Roller, transfer, right arm
9 40X7582 Transfer roller
10 40X7605 Roller, transfer, left arm with cable
11 40X8365 Cover, printhead access
12 40X7607 Sensor (input)
13 40X7693 Sensor (control panel interlock)
14a 40X7570 Controller card, 2.4" LCD, MS71x, MS810n/dn/dtn, MS811n/dn/dtn, MS812dn/dtn
14b 40X7571 Controller card, 4.3" touch screen, MS810de
14c 40X7572 Controller card, 7" touch screen, MS812de
15 40X7722 Card, controller, access shield
16 40X7692 Cartridge smart chip contact with cable
17 40X7689 Imaging unit smart chip contact with cable
18 40X7691 Sensor (standard bin full) with output bin guide
19 40X7592 Sensor
20 40X8034 Plate, cover, option card
21 40X7707 Cable, printhead power
22 40X7708 Cable, printhead video
23 40X7597 Printhead, laser (quad diode) MS81x
24 40X8481 Printhead, laser (dual diode) MS710, MS711
Top
Lexmark MS810 Assembly 5: Drive Motors



Assembly 5: Drive Motors
1 40X7684 Motor, duplex with cable
2 40X7695 Fan, duplex cooling
3 40X7580 Fan, cartridge cooling
4 40X7596 Motor, toner add with cable
5 40X7576 Cable, fuser drive motor
6a 40X7595 Motor, fuser drive motor (belt fuser) MS81x
6b 40X8401 Motor, fuser drive motor (hot roll fuser) MS71x
7 40X7594 Motor, main drive
8 40X7574 Cable, main motor
9 40X7579 Fan, main cooling with cable
10 40X7682 Motor, upper redrive with cable
11 40X8483 Fan, fuser cooling, hot roller fuser
12 40X8484 Cable, fuser cooling fan, hot roller
Top

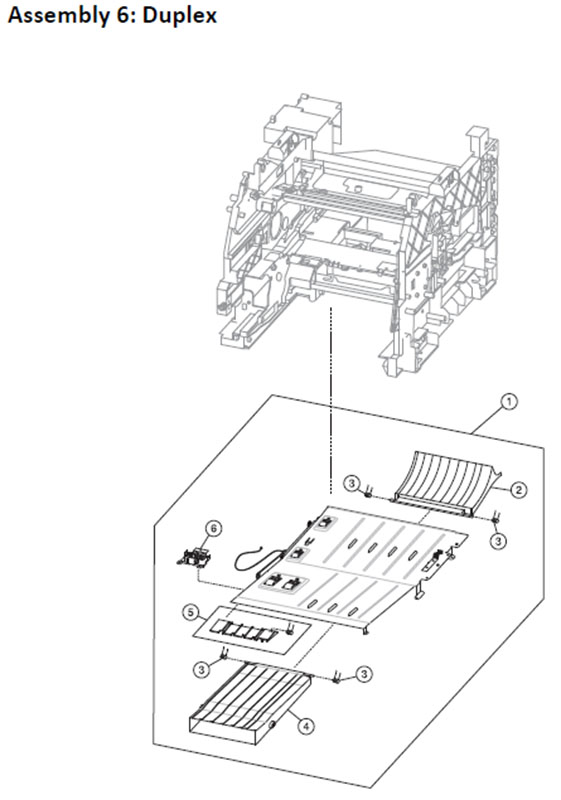

Lexmark MS810 Assembly 6: Duplex



Assembly 6: Duplex
1a 40X8803 Internal duplex with cable MS71x only
1b 40X7683 Duplex, internal with cable MS711, MS81x
2a 40X8804 Duplex rear flap MS71x only
2b 40X7668 Flap, duplex rear
3 40X7723 Spring, torsion
4 40X7667 Flap, duplex front
5 40X7952 Guide, duplex jam release
6 40X7697 Sensor (duplex path) with cable
Top

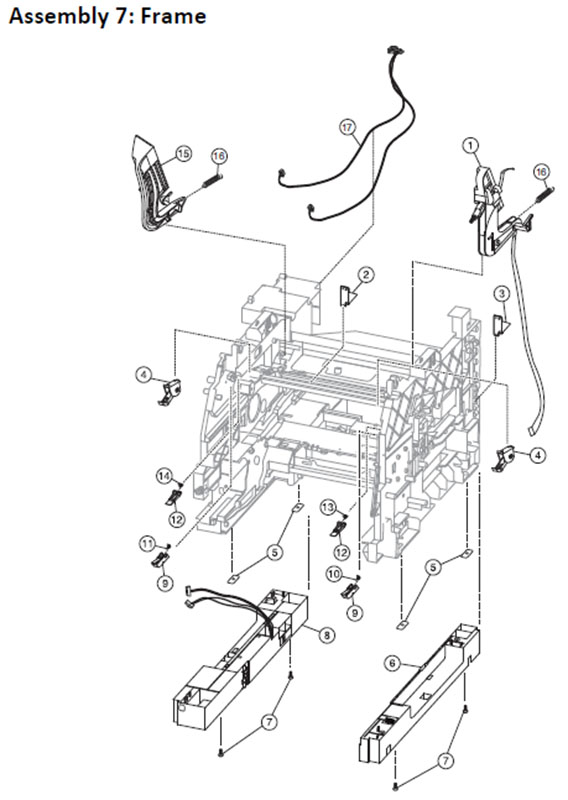

Lexmark MS810 Assembly 7: Frame



Assembly 7: Frame
1 40X8316 Hinge, right operator panel with cable
2 40X7732 Pivot, left frame
3 40X7733 Pivot, right frame
4 40X7714 Clamp, imaging unit
5 40X7589 Plate, fastener
6a 40X7728 Extension, right frame with tray latch, 550-sheet MS711, MS81x
6b 40X8408 Extension, right frame, 250-sheet MS710 only
7 40X7590 Screw, M5x12
8a 40X7727 Extension, left frame, 550-sheet MS711, MS81x
8b 40X8407 Extension, left frame, 250-sheet MS710 only
9 40X7716 Lock, toner cartridge
10 40X7721 Spring, torsion
11 40X7719 Spring, torsion
12 40X7717 Clamp, toner cartridge
13 40X7720 Spring, torsion
14 40X7718 Spring, torsion
15 40X8315 Hinge, left operator panel MS71x, MS81x
16 40X7724 Spring, recoil
17 40X7575 Cable, top option interface
Top

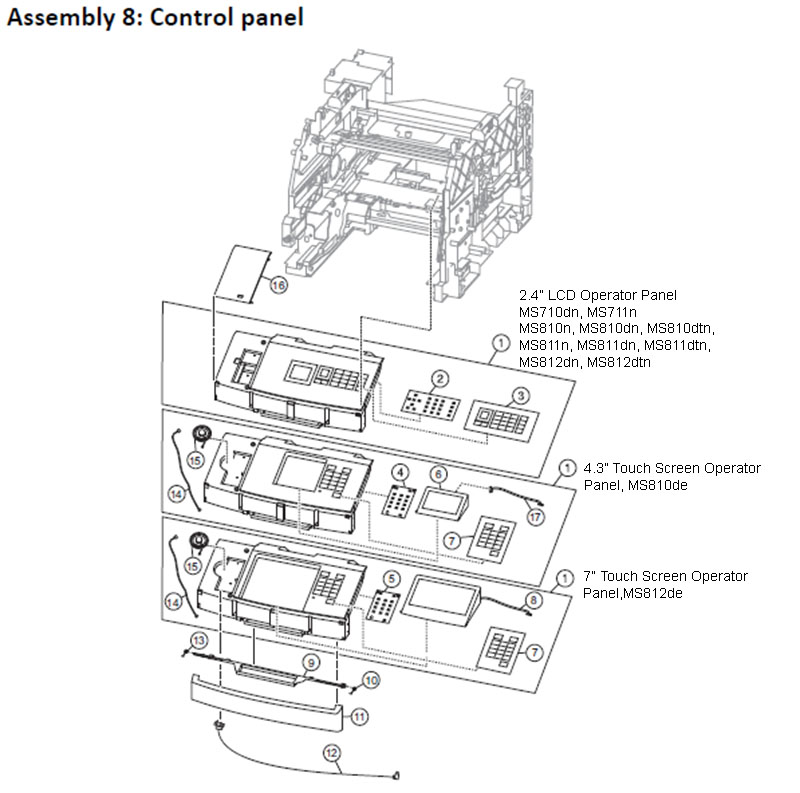

Lexmark MS810 Assembly 8: Control Panel



Assembly 8: Contol Panel
1a 40X7700 Operator panel, 2.4" LCD, MS71x, MS810n/dn/dtn, MS811n/dn/dtn, MS812dn/dtn (not for touch screen models MS810de, MS812de)
1b 40X7701 Operator panel, 4.3" touch screen, MS810de only
1c 40X7875 Operator Panel, 7" touch screen, MS812de only
2 40X7737 Card, operator panel, 2.4" LCD
3 40X7741 Buttons, operator panel, 2.4" LCD
4 40X7735 Card, operator panel, 4.3" touch screen, MS810de only
5 40X8042 Card, operator panel, 7" touch screen MS812de only
6 40X8537 Display, 4.3" touch screen MS810de only
7 40X8661 Buttons, operator panel, 4.3", 7" display MS810de MS812de only
8 40X8538 Display, 7" touch screen MS812de only
9 40X7729 Latch, operator panel
10 40X7731 Spring, torsion
11 40X7681 Cover, operator panel front
12 40X7704 Cable, USB
13 40X7730 Spring, torsion
14 40X7702 Cable, speaker
15 40X9079 Speaker
16 40X8334 Operator panel left bezel, MS810n
16 40X8335 Operator panel left bezel, MS810dn
16 40X8336 Operator panel left bezel, MS810de
16 40X8337 Operator panel left bezel, MS811n
16 40X8338 Operator panel left bezel, MS811dn
16 40X8339 Operator panel left bezel, MS812dn
16 40X8340 Operator panel left bezel, MS812de
16 40X8362 Operator panel left bezel, MS710dn
16 40X8363 Operator panel left bezel, MS711dn
16 40X8364 Cover, operator panel left USB
17 40X7705 Cable, 4.3" display to operator panel card, MS810de only
Top

Lexmark MS810 Assembly 9: Paper Tray



Assembly 9: Paper Tray


1 40X7712 Solenoid, multipurpose feeder
2 40X7600 Roller, pick, multipurpose feeder
3 40X7601 Flange, MPF feed roller
4a 40X7742 Tray, 500 sheet MS71x, MS81x
4b 40X8153

Tray, 250-sheet MS71x, MS81x
5 40X7713 Roller, separator
6 40X7598 Plate, MPF feeder lift with cable
7 40X7593 Pick roller asm
8 40X7591 Feeder, media
9 40X8541 Actuator, media size
10 40X7599 Roller, media aligner with MPF pick roller
11 40X7592 Sensor
12 40X7592 Sensor
Top
